Plotter Cut Transfer | HTV
OR contact us at: [email protected]
Our Plotter Cut Transfers are individually cut logos made from high-quality Heat Transfer Vinyl (HTV). They offer sharp edges, strong adhesion, and a wide range of surface effects – from standard solid colors to metallic, reflective, and puff finishes.
This method is perfect for small and medium quantities, personalized designs, or individual logos. Each transfer is pre-cut and delivered separately, ready for immediate application by heat press.
The vinyl material ensures excellent coverage and durability, while still maintaining flexibility on stretchable fabrics. Minimum line thickness is 0.7 mm, providing reliable stability even in detailed designs.
Produced in Europe by Megaprint Transfers.
Technical Specifications
| Parameter | Description |
|---|---|
| Technology | Plotter-cut from high-quality Heat Transfer Vinyl (HTV) sheets |
| Available Effects | Solid colors, metallic, reflective, puff, and specialty finishes |
| Minimum Line Thickness | 0.7 mm (recommended for optimal cutting precision) |
| Finish | Matte, gloss, metallic, or special effect depending on vinyl type |
| Fabric Compatibility | Cotton, polyester, blends, and most performance fabrics |
| Washing Resistance | Up to 60 °C / 140 °F |
| Flexibility / Stretch | High flexibility; conforms well to elastic fabrics |
| Supplied As | Individual pre-cut logos ready for pressing |
| Reflective materials certified | EN ISO 20471 |
Artwork / File Requirements
| Parameter | Description |
|---|---|
| File Types Accepted | AI, PDF, EPS, CDR, PSD, TIFF, PNG, JPG |
| Recommended Format | Vector or 300 dpi bitmap |
| Design Preparation | Single color |
Application Instructions
| Step | Setting / Description |
|---|---|
| Temperature | 150°C / 338°F |
| Time | 15 seconds |
| Pressure | 3-4 atm (medium) |
| Peel Type | Cold&Hot peel |
| Notes | Test before mass production for optimal settings per fabric |
Storage & Handling
| Parameter | Description |
|---|---|
| Storage Temperature | 15-25°C in a dry, flat area |
| Shelf Life | Up to 24 months from production |
| Handling | Avoid storing the transfers in areas with high humidity or heat. |
Crafted in Clean Lines

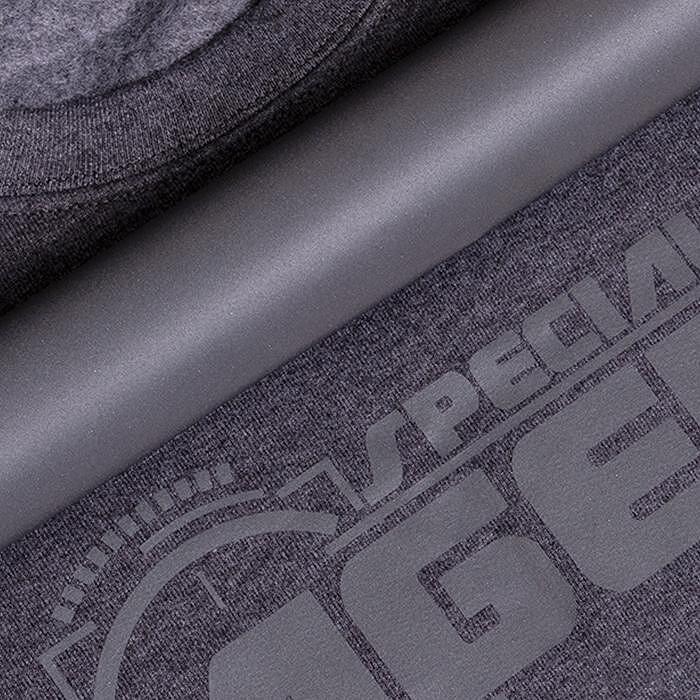

Plotter Cut Transfers bring simplicity to life through perfect contours and bold, solid colors. Ideal for names, numbers, and minimal logos
The Heat Press Settings. Easy and Clean.
150C
(302F)
Set up the heat press temperature
15 seconds
Set heat press timer
3-4 atm.
(Medium Pressure)
Set up the machine pressure
Hot & Cold Peel
Remove the film on cold or hot
Please note that the recommended heat press settings may vary depending on your specific equipment and textiles. We suggest making a few test applications to determine the most optimal temperature and pressing time. If you encounter any difficulties, do not hesitate to contact our heat transfer experts for guidance.
