3D Tatami Silicone Patch
OR contact us at: [email protected]

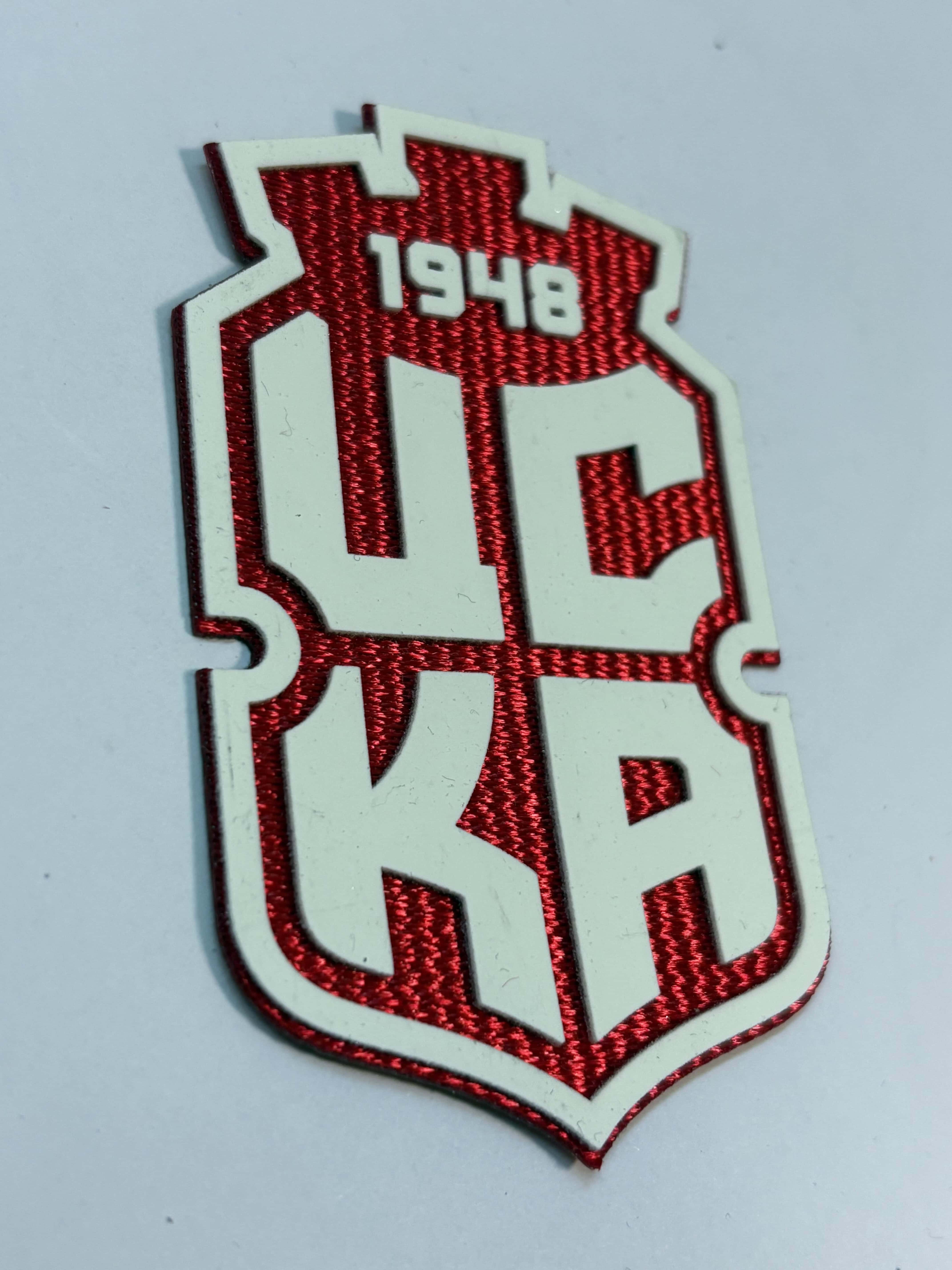

Our 3D Tatami Silicone Patch combines the elegant texture of Tatami fabric with the premium look and durability of 3D Silicone Transfers. This hybrid heat-transfer solution delivers a distinct glossy fabric pattern beneath a raised silicone surface, creating a patch that looks refined and dynamic on any garment
Tatami fabric is widely used in professional football jerseys and other sportswear applications for its clean, reflective texture and light weight. It can also be fully sublimated, allowing for intricate background designs, gradients, and branding elements before applying the silicone layer.
Once build with our 3D Silicone finish, the transfer gains all the advanced features of our silicone series, while the Tatami base adds a subtle fabric texture and visual depth.
Technical Specifications
| Parameter | Description |
|---|---|
| Printing Method | Tatami fabric base combined with screen-printed 3D Silicone layers. Sublimation printing on tatami |
| Layer Structure | Dual-layer construction: sublimated Tatami textile + raised silicone surface. |
| Maximum Height | Typically up to 1 mm – 1.5 mm |
| Surface Finish | Matte silicone with fine textured fabric |
| Pantone Colors | All Pantone Coated colors available; supports sublimated full-color backgrounds. |
| Texture | Glossy woven Tatami pattern visible under the silicone layer, creating depth and light reflection. |
| Fabric Compatibility | Ideal for polyester, elastane, and technical sports fabrics. Suitable for football jerseys and performance garments. |
| Washing Resistance | Up to 40 °C / 104 °F wash resistance. |
Artwork / File Requirements
| Parameter | Description |
|---|---|
| File Types Accepted | AI, PDF, EPS, CDR, PSD, TIFF, PNG, JPG |
| Recommended Format | Vector or 300 dpi bitmap |
| Design Preparation | Available only as solid objects with continuous structure; not suitable for separated letters or fine objects |
| Maximum Size | 8 × 12 cm (3.15 × 4.72 in) |
Application Instructions
| Step | Setting / Description |
|---|---|
| Pre-Press | Remove the protective plastic film from the back side of the patch before pressing |
| Temperature | 170°C / 338°F |
| Time | 20 seconds |
| Pressure | 5 atm (medium) |
| Protection Pad | Place a silicone pad over the patch during pressing to protect the 3D texture and prevent surface flattening |
| Notes | Test before mass production for optimal settings per fabric |
Storage & Handling
| Parameter | Description |
|---|---|
| Storage Temperature | 15-25°C in a dry, flat area |
| Shelf Life | Up to 24 months from production |
| Handling | Avoid storing the transfers in areas with high humidity or heat. |
A Play with Depth and Textures
3D Tatami Silicone Patches merge the dimensional beauty of 3D Silicone with a fabric-like pattern underneath. This combination of glossy texture and matt raised silicone gives new depth of every type of logo
The Heat Press Settings. Easy and Clean.
170C
(338F)
Set up the heat press temperature. ⚠️Remove the protective plastic film from the back side of the patch before pressing
20 seconds
Set heat press timer
5 atm.
(Medium Pressure)
Set up the machine pressure
Silicone Pad
Protect the 3D texture and prevent surface flattening
Please note that the recommended heat press settings may vary depending on your specific equipment and textiles. We suggest making a few test applications to determine the most optimal temperature and pressing time. If you encounter any difficulties, do not hesitate to contact our heat transfer experts for guidance.
