NFC Patch
OR contact us at: [email protected]

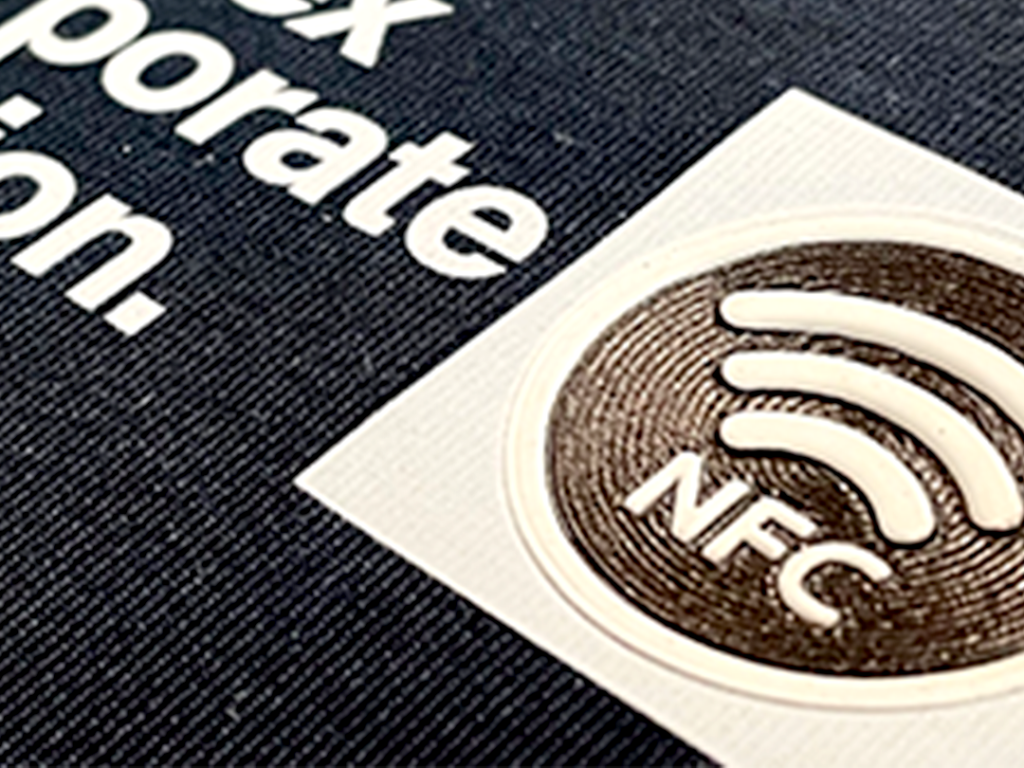

Our NFC Embedded Patches take modern branding a step further by combining the durability and texture of our 3D TPU Patches with the intelligence of an integrated NFC chip. Each emblem is digitally printed with UV technology on a thermoplastic polyurethane (TPU) base and precisely embossed with a CNC-milled mold, resulting in a raised, flexible logo with sharp detail and a smooth, tactile finish.
The built-in NFC chip transforms every patch into a digital touchpoint — simply tap it with a smartphone to access product data, authenticity certificates, or brand experiences. This makes it an ideal solution for the upcoming Digital Product Passport (DPP) requirements that will become mandatory across the EU from 2027, ensuring your products are both compliant and future-ready.
With all Pantone Coated colors, photo-quality UV printing, and optional matte, gloss or metallic these patches blend high-end aesthetics with advanced functionality. The result is a smart, durable, and visually striking emblem that not only represents the design – it connects it.
The Digital Product Passport (DPP) is part of the EU’s upcoming sustainability legislation that will require every product sold within the European Union to include a digital identity containing information about its origin, materials, and lifecycle. By embedding an NFC chip directly into the patch, all essential data – such as brand details, material composition, care instructions, or authenticity verification – can be accessed instantly with a smartphone.
Durable. Intelligent. Future-proof.
Produced in Europe by Megaprint Transfers.
Technical Specifications
| Parameter | Description |
|---|---|
| Printing Method | Digitally printed with UV technology on a thermoplastic polyurethane (TPU) base and embossed using a CNC-milled tool |
| Embedded Technology | Integrated NFC chip inside the patch, allowing smartphone interaction for digital content, product data, or authentication |
| Digital Product Passport (DPP) | Fully compatible with the upcoming EU DPP requirements (from 2027) — enabling access to product origin, composition, and traceability data |
| Maximum Height | Typically 1–2 mm (1000–2000 microns) |
| Surface Finish | Available in matte, gloss, or metallic finishes |
| Pantone Colors | All Pantone Coated colors available; supports full-color gradients and photo-quality details |
| Texture Options | Multiple texture variations available; a free digital preview can be provided before production |
| Fabric Compatibility | Suitable for cotton, polyester, softshell, nylon, and other performance fabrics. We recommend requesting samples when testing on new materials |
| Washing Resistance | Up to 40°C / 104°F wash resistance |
| Flexibility / Stretch | Moderate elasticity; maintains shape and adhesion even on stretchable garments |
| Special Effects | Metallic, or custom texture combinations available |
| Smart Functionality | Each patch can be encoded individually with custom data, URLs, or authentication links |
| Carrier | Supplied individually |
Artwork / File Requirements
| Parameter | Description |
|---|---|
| File Types Accepted | AI, PDF, EPS, CDR, PSD, TIFF, PNG, JPG |
| Recommended Format | Vector files or 300 dpi bitmap images |
| Design Preparation | Produced as solid, continuous objects – not suitable for separated letters, thin lines, or very fine elements |
| Embedded Chip Size | The integrated NFC chip has a 2 cm diameter. The patch design must be larger than the chip area to ensure full coverage and correct embedding |
| Maximum Size | 8 × 12 cm (3.15 × 4.72 in) |
| Color Range | Unlimited colors, gradients, and photographic details supported |
| Texture Options | Multiple surface textures available; free digital preview provided before production |
Application Instructions
| Step | Setting / Description |
|---|---|
| Temperature | 170°C / 338°F |
| Time | 20 seconds |
| Pressure | 5 atm (medium) |
| Protection Pad | Place a silicone pad over the patch during pressing to protect the 3D texture and prevent surface flattening |
| Notes | Test before mass production for optimal settings per fabric |
Storage & Handling
| Parameter | Description |
|---|---|
| Storage Temperature | 15-25°C in a dry, flat area |
| Shelf Life | Up to 24 months from production |
| Handling | Avoid storing the transfers in areas with high humidity or heat. |
Smart by Design
NFC Patches integrate contactless technology within your branding, allowing instant access to stories, authentication, or product data, all through a simple tap.
The Heat Press Settings. Easy and Clean.
170C
(338F)
Set up the heat press temperature
20 seconds
Set heat press timer
5 atm.
(Medium Pressure)
Set up the machine pressure
Silicone Pad
Protect the 3D texture and prevent surface flattening
Please note that the recommended heat press settings may vary depending on your specific equipment and textiles. We suggest making a few test applications to determine the most optimal temperature and pressing time. If you encounter any difficulties, do not hesitate to contact our heat transfer experts for guidance.
